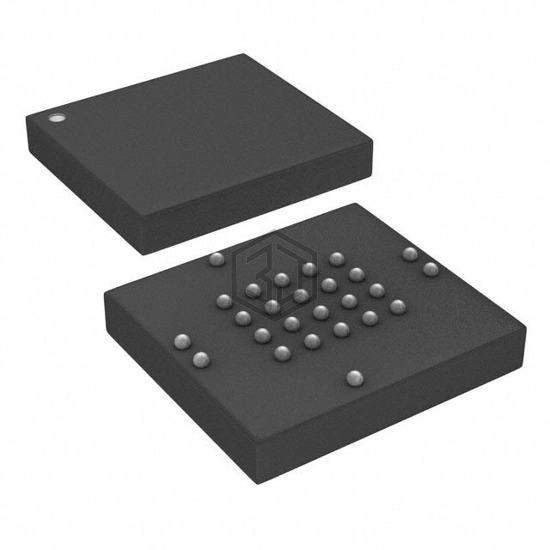

Analog Devices Inc./Maxim Integrated
IC SWITCH SPST OCTAL 72CSBGA
MAX4802CXZ+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST OCTAL 72CSBGA. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 26-LFBGA, CSBGA, number of circuits 8.
In Stock: 6,399
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 8 |
| On-State Resistance (Max) | 38Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.9Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 13.2V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 5µs, 5µs |
| -3db Bandwidth | - |
| Charge Injection | 820pC |
| Channel Capacitance (CS(off), CD(off)) | 18pF |
| Current - Leakage (IS(off)) (Max) | 4µA |
| Crosstalk | -80dB @ 5MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 26-LFBGA, CSBGA |
| Supplier Device Package | 72-CSBGA (6x5.35) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4800CXZ+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST OCTAL 72CSBGA | 100% | View |
| MAX4800CTM+T | Analog Devices Inc./Maxim Integrated | IC SWITCH OCTAL SPST 48TQFN | 100% | View |
| MAX4802ACCM+ | Analog Devices Inc./Maxim Integrated | IC SWITCH OCTAL SPST 48LQFP | 91% | View |
| HV2918/R4X | Microchip Technology | 32-CH 200V +5V BIAS MUX SPDT | 80% | View |
| MAX4968BEXB+W | Analog Devices Inc./Maxim Integrated | 16 CHANNEL HIGH VOLTAGE / HIGH B | 75% | View |
| MAX4968AECM+ | Analog Devices Inc./Maxim Integrated | IC LINEAR SWITCH 16CH HV 48LQFP | 64% | View |
Submit your RFQ for MAX4802CXZ+ and get a quote within 24 hours.
