Analog Devices Inc./Maxim Integrated

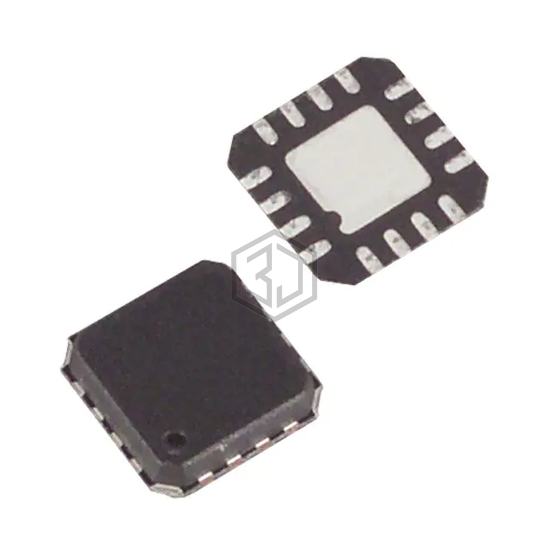

IC MULTIPLEXER QUAD 2X1 16QFN
MAX4784EGE is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MULTIPLEXER QUAD 2X1 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 4.
In Stock: 8,529
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 1Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.6V ~ 4.2V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 10ns |
| -3db Bandwidth | 123MHz |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 33pF, 60pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -95dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
MAX4784EGE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG812YRU-REEL | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 89% | View |
| ADG811YRU-REEL | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 89% | View |
| ADG813YRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 89% | View |
| ISL84782IV-T | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 16TSSOP | 66% | View |
| ISL8499IRTZ-T | Intersil | SPDT, 4 FUNC, 1 CHANNEL, CMOS | 65% | View |
| DG2034EDQ-T1-GE3 | Vishay Siliconix | IC SWITCH SP4T SINGLE 10MSOP | 60% | View |
Submit your RFQ for MAX4784EGE and get a quote within 24 hours.
