Analog Devices Inc./Maxim Integrated

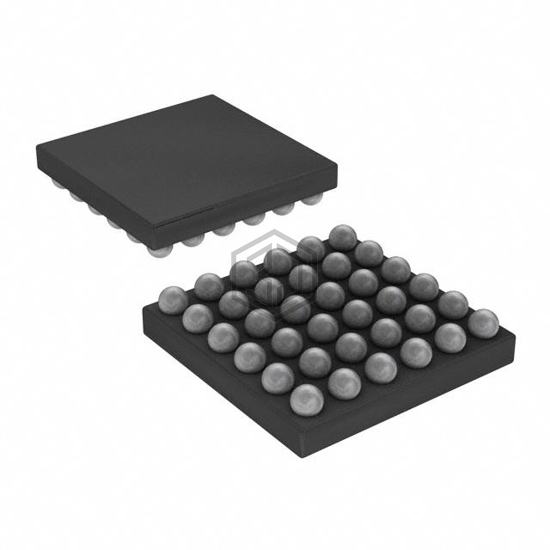

IC SWITCH QUAD DPDT 36UCSP
MAX4760EBX+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH QUAD DPDT 36UCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 36-WFBGA, CSPBGA, number of circuits 4.
In Stock: 6,755
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 3.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 140ns, 50ns |
| -3db Bandwidth | 150MHz |
| Charge Injection | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 25pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -95dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 36-WFBGA, CSPBGA |
| Supplier Device Package | 36-UCSP (3x3) |
MAX4760EBX+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4760ETX+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD DPDT 36TQFN | 100% | View |
| MAX4761EWX+T | Analog Devices Inc./Maxim Integrated | IC SWITCH OCTAL SPDT 36UCSP | 94% | View |
| DG1411EEQ-T1-GE4 | Vishay Siliconix | IC SWITCH SPST QUAD 16TSSOP | 79% | View |
| DG1411EEN-T1-GE4 | Vishay Siliconix | IC ANLG SWITCH QUAD SPST 16QFN | 79% | View |
| MAX4758ETX+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD DPDT 36TQFN | 51% | View |
| MAX4758EWX+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD DPDT 36QFN | 51% | View |
Submit your RFQ for MAX4760EBX+ and get a quote within 24 hours.
