Analog Devices Inc./Maxim Integrated

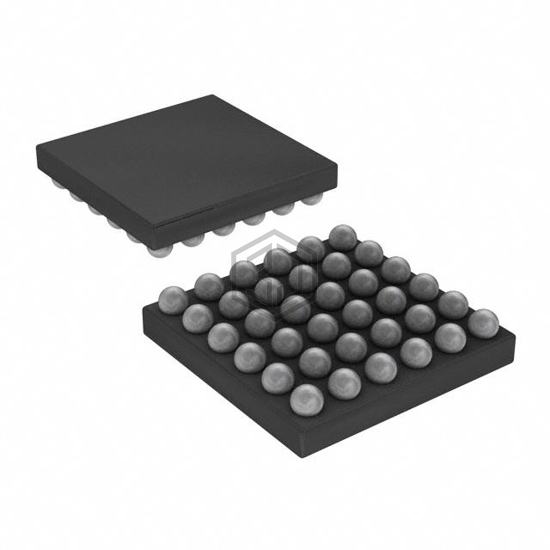

IC SWITCH QUAD DPDT 36UCSP
MAX4760AEBX+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH QUAD DPDT 36UCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 36-WFBGA, CSPBGA, number of circuits 4.
In Stock: 1,165
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 3.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 800ns, 800ns |
| -3db Bandwidth | 150MHz |
| Charge Injection | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 25pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -95dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 36-WFBGA, CSPBGA |
| Supplier Device Package | 36-UCSP (3x3) |
MAX4760AEBX+T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG211DY+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 72% | View |
| MAX4947ETG+ | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE DPDT 24TQFN | 68% | View |
| MAX4947ETG+T | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE DPDT 24TQFN | 68% | View |
| MAX4948ETG+T | Analog Devices Inc./Maxim Integrated | IC SWITCH HEX SPDT 24TQFN | 67% | View |
| MAX4948ETG+ | Analog Devices Inc./Maxim Integrated | IC SWITCH HEX SPDT 24TQFN | 67% | View |
| MAX4948ERA+T | Analog Devices Inc./Maxim Integrated | HEX SPDT DATA SWITCH | 67% | View |
Submit your RFQ for MAX4760AEBX+T and get a quote within 24 hours.
