Analog Devices Inc./Maxim Integrated

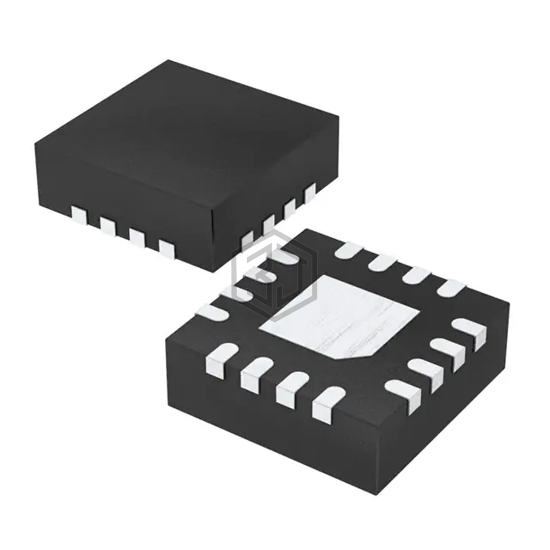

IC SWITCH QUAD SPST 16QFN
MAX4753EGE+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH QUAD SPST 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 4.
In Stock: 7,763
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 900mOhm |
| Channel-to-Channel Matching (ΔRon) | 30mOhm |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 30ns, 25ns |
| -3db Bandwidth | - |
| Charge Injection | 21pC |
| Channel Capacitance (CS(off), CD(off)) | 31pF, 30pF |
| Current - Leakage (IS(off)) (Max) | 2.5nA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
MAX4753EGE+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4752EUD+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 100% | View |
| RS2299XTQC16 | Runic Technology | IC SWITCH QUAD SPDT 16QFN | 59% | View |
| TS5A3159ADBVR | Texas Instruments | IC SWITCH SPDT SOT23-6 | 56% | View |
| NLAS4684FCT1G | onsemi | IC SWITCH DUAL SPDT 10MICROBUMP | 55% | View |
| DG9411EDL-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH SC70 | 54% | View |
| FSA4159P6X | onsemi | IC SWITCH SPDT SC70-6 | 53% | View |
Submit your RFQ for MAX4753EGE+ and get a quote within 24 hours.
