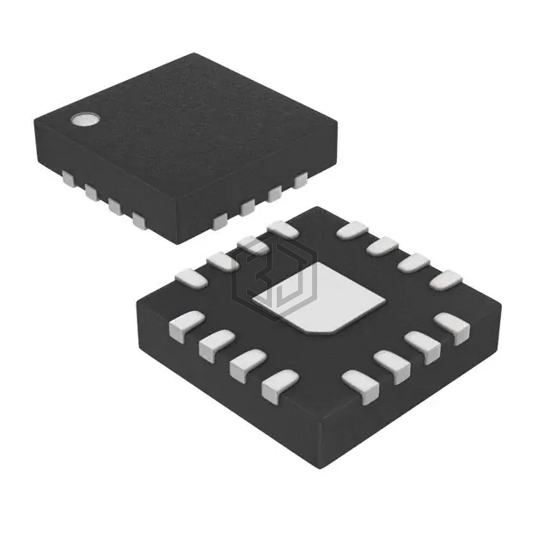

Analog Devices Inc./Maxim Integrated
IC SWITCH ANLG QUAD SPDT 16TQFN
MAX4747ETE+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH ANLG QUAD SPDT 16TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 4.
In Stock: 9,515
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 25Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 11V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 85ns, 45ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 9pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -84dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (4x4) |
MAX4747ETE+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4747EUD+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 100% | View |
| MAX4748EWE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16WLP | 100% | View |
| MAX4748EUD+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 100% | View |
| MAX4751EUD+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 98% | View |
| MAX4751EUD+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 98% | View |
| MAX4750EUD+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 14TSSOP | 94% | View |
Submit your RFQ for MAX4747ETE+ and get a quote within 24 hours.
