Analog Devices Inc./Maxim Integrated

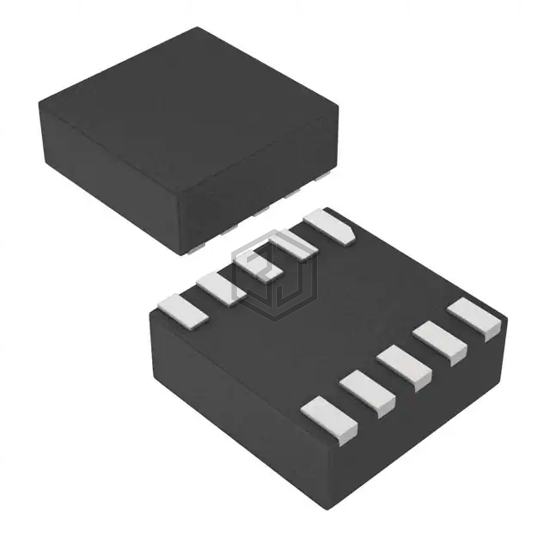

IC SWITCH SPDT DUAL 10UDFN
MAX4745HELB+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPDT DUAL 10UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-WFDFN, number of circuits 2.
In Stock: 6,179
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 950mOhm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 560ns, 450ns |
| -3db Bandwidth | 25MHz |
| Charge Injection | 550pC |
| Channel Capacitance (CS(off), CD(off)) | 90pF, 90pF |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | -75dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN |
| Supplier Device Package | 10-uDFN (2x2) |
MAX4745HELB+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NJU4052BM | Nisshinbo Micro Devices Inc. | IC MUX/DEMUX DUAL 4X1 16DMP | 65% | View |
| DG221BDY-E3 | Vishay Siliconix | IC SWITCH QUAD SPST/CMOS 16SOIC | 52% | View |
| DG221BDY-T1-E3 | Vishay Siliconix | IC SWITCH QUAD SPST/CMOS 16SOIC | 52% | View |
| DG201ADY+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 51% | View |
| DG201ADY+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 51% | View |
| DG202DY+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 51% | View |
