Analog Devices Inc./Maxim Integrated

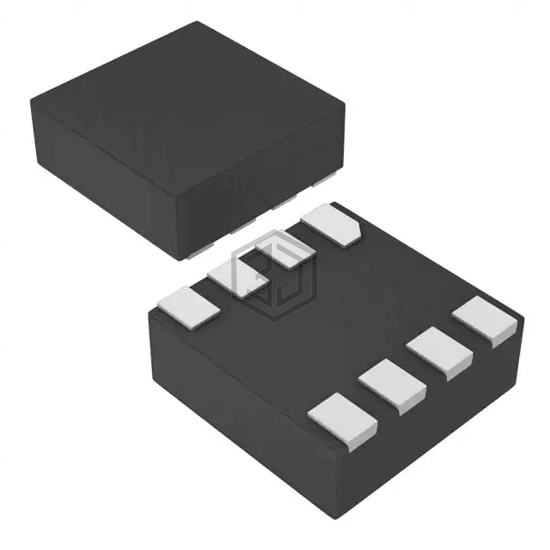

IC SWITCH DUAL SPST 8UDFN
MAX4742ELA+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH DUAL SPST 8UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-WFDFN, number of circuits 2.
In Stock: 3,036
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 800mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 24ns, 16ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | 28pC |
| Channel Capacitance (CS(off), CD(off)) | 32pF, 32pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -110dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN |
| Supplier Device Package | 8-uDFN (2x2) |
MAX4742ELA+T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4741EUA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 100% | View |
| MAX4743EKA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST SOT23-8 | 100% | View |
| MAX4741EKA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST SOT23-8 | 100% | View |
| MAX4743EUA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 100% | View |
| NX3L2G384GD,125 | NXP USA Inc. | IC ANALOG SWITCH SPST XSON8U | 69% | View |
| NX3L1G53GM,125 | NXP USA Inc. | IC SWITCH SPDT 8XQFN | 64% | View |
Submit your RFQ for MAX4742ELA+T and get a quote within 24 hours.
