Analog Devices Inc./Maxim Integrated

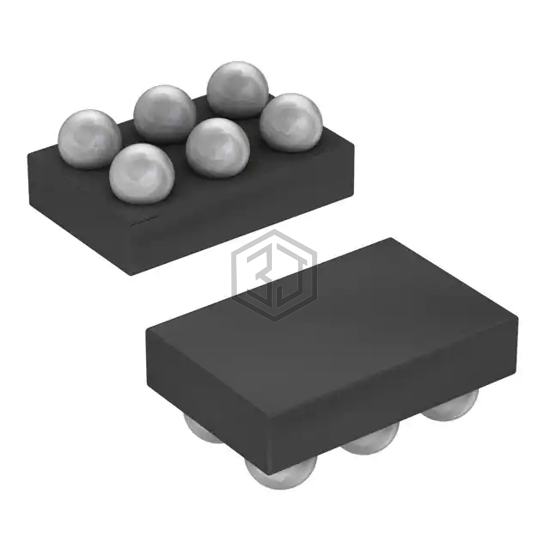

IC SWITCH SPST SINGLE 6TSSOP
MAX4696EBT-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST SINGLE 6TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 6-WFBGA, WLBGA, number of circuits 1.
In Stock: 27,500
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 20Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| -3db Bandwidth | 200MHz |
| Charge Injection | 8pC |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFBGA, WLBGA |
| Supplier Device Package | 6-WLP |
MAX4696EBT-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4697EBT-T | Analog Devices Inc./Maxim Integrated | IC POWER MANAGEMENT | 100% | View |
| MAX4696EBT | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SINGLE 6TSSOP | 100% | View |
| DG2519EDN-T1-GE4 | Vishay Siliconix | IC SWITCH SPDT DUAL 10DFN | 88% | View |
| DG2032EDN-T1-GE4 | Vishay Siliconix | IC ANALOG SWITCH DUAL 12QFN | 87% | View |
| DG419LEDY-T1-GE4 | Vishay Siliconix | IC ANALOG SWITCH 8SOIC | 69% | View |
| DG419LEDQ-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH 8MSOP | 69% | View |
Submit your RFQ for MAX4696EBT-T and get a quote within 24 hours.
