Analog Devices Inc./Maxim Integrated

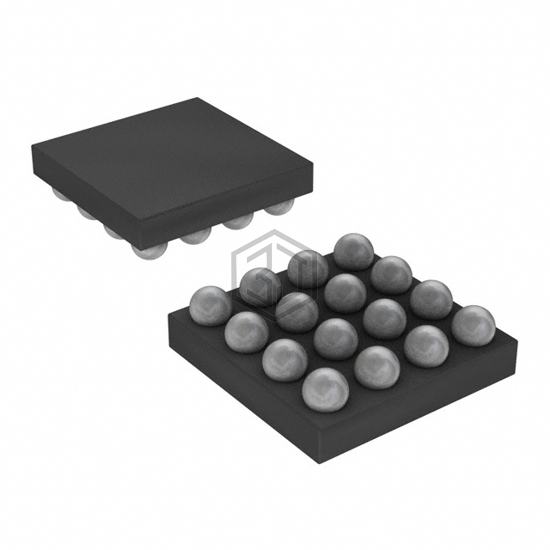

IC MULTIPLEXER DUAL 4X1 16UCSP
MAX4692EBE+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MULTIPLEXER DUAL 4X1 16UCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFBGA, CSPBGA, number of circuits 2.
In Stock: 1,654
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 70Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 11V |
| Voltage - Supply, Dual (V±) | ±2V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 0.1pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 68pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -75dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFBGA, CSPBGA |
| Supplier Device Package | 16-UCSP (2x2) |
MAX4692EBE+T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4692ETE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TQFN | 100% | View |
| MAX4691EGE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16QFN | 91% | View |
| ADG507AKRU | Analog Devices Inc. | IC MULTIPLEXER DUAL 8X1 28TSSOP | 75% | View |
| HI9P0549-9 | Intersil | DIFFERENTIAL MUX, 4 CHANNEL | 73% | View |
| ADG201AKPZ | Analog Devices Inc. | IC SWITCH QUAD SPST 20PLCC | 59% | View |
| MAX358EWE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 55% | View |
Submit your RFQ for MAX4692EBE+T and get a quote within 24 hours.
