Analog Devices Inc./Maxim Integrated

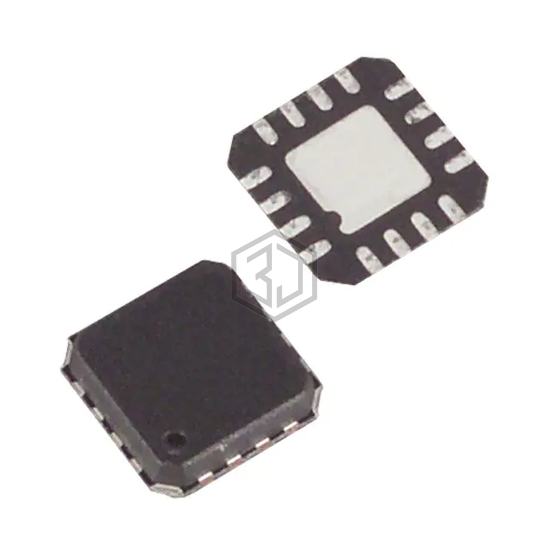

IC MULTIPLEXER 8X1 16QFN
MAX4691EGE+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MULTIPLEXER 8X1 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 1.
In Stock: 9,033
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 70Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 11V |
| Voltage - Supply, Dual (V±) | ±2V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 0.1pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 68pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -75dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
