Analog Devices Inc./Maxim Integrated

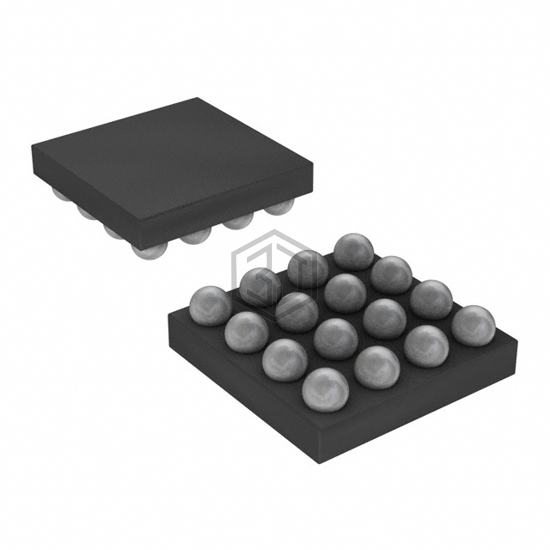

IC MULTIPLEXER 8X1 16UCSP
MAX4691EBE+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MULTIPLEXER 8X1 16UCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFBGA, CSPBGA, number of circuits 1.
In Stock: 6,668
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 70Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 11V |
| Voltage - Supply, Dual (V±) | ±2V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 0.1pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 68pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -75dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFBGA, CSPBGA |
| Supplier Device Package | 16-UCSP (2x2) |
MAX4691EBE+T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4692EGE-T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16QFN | 91% | View |
| MAX4675EUT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-6 | 80% | View |
| ADG526AKRZ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28SOIC | 75% | View |
| ADG527AKRZ | Analog Devices Inc. | IC MUX ANALOG DUAL 8CH 28SOIC | 67% | View |
| DG201BDY-E3 | Vishay Siliconix | IC SWITCH ANA QUAD CMOS 16SOIC | 61% | View |
| HI9P0303-9Z | Renesas Electronics America Inc | IC SWITCH DUAL SPDT 14SOIC | 57% | View |
