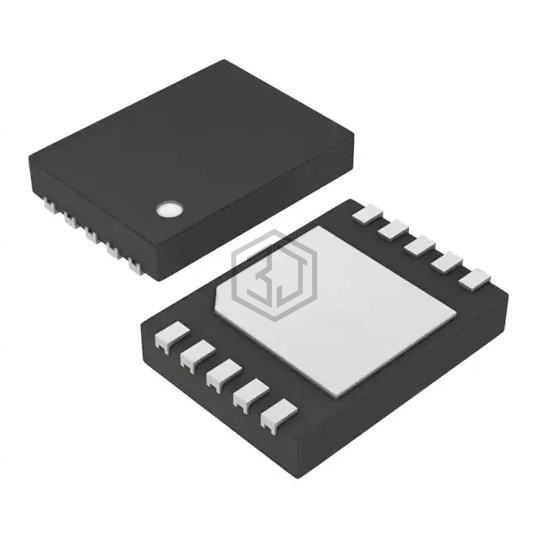

Analog Devices Inc./Maxim Integrated
IC ANLG SWITCH SPDT DUAL TDFN
MAX4685ETB+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC ANLG SWITCH SPDT DUAL TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-WFDFN Exposed Pad, number of circuits 2.
In Stock: 3,608
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 800mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm (Typ) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| -3db Bandwidth | - |
| Charge Injection | 200pC |
| Channel Capacitance (CS(off), CD(off)) | 84pF, 37pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -68dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x4) |
MAX4685ETB+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4684AEBC+T | Analog Devices Inc./Maxim Integrated | 0.5 OHM/0.8OHM LOW-VOLTAGE, DUAL | 100% | View |
| RS2105XN | Runic Technology | IC SWITCH DUAL SPDT 10MSOP | 79% | View |
| DG411LEDY-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-SOIC | 65% | View |
| ISL84053IAZ-T | Renesas Electronics America Inc | IC MUX/DEMUX TRIPLE 2X1 16QSOP | 54% | View |
| ADG201HSKPZ | Analog Devices Inc. | IC SWITCH QUAD SPST 20PLCC | 51% | View |
| ISL84051IAZ-T | Renesas Electronics America Inc | IC MUX/DEMUX 8X1 16QSOP | 50% | View |
Submit your RFQ for MAX4685ETB+ and get a quote within 24 hours.
