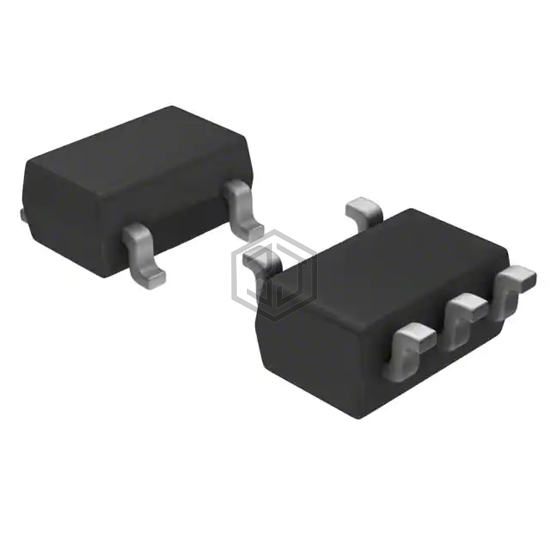

Analog Devices Inc./Maxim Integrated
IC SWITCH SPST SOT23-5
MAX4569EUK-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-74A, SOT-753, number of circuits 1.
In Stock: 4,646
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 70Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 150ns, 80ns |
| -3db Bandwidth | - |
| Charge Injection | 6pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
MAX4569EUK-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4575EUA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 90% | View |
| MAX4630ESD+ | Analog Devices Inc./Maxim Integrated | IC SW QUAD ANLG CMOS SPST 14SOIC | 81% | View |
| DG1408EEN-T1-GE4 | Vishay Siliconix | IC MUX 8:1 8CH 16QFN | 73% | View |
| MAX4558EEE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16QSOP | 70% | View |
| DG408EUE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TSSOP | 67% | View |
| DG403DY+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL DPST 16SOIC | 65% | View |
Submit your RFQ for MAX4569EUK-T and get a quote within 24 hours.
