Analog Devices Inc./Maxim Integrated

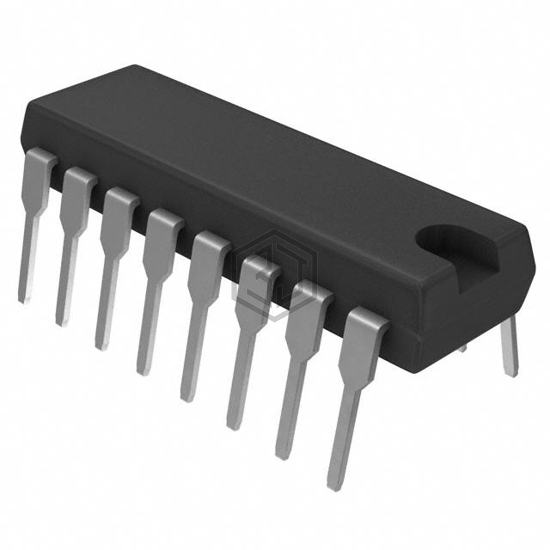

IC ANALOG SW QUAD VID BID 16DIP
MAX4566CPE+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC ANALOG SW QUAD VID BID 16DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case 16-DIP (0.300", 7.62mm), number of circuits 2.
In Stock: 8,410
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 60Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm (Typ) |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| -3db Bandwidth | 350MHz |
| Charge Injection | 25pC |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF, 2.5pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -85dB @ 10MHz |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
MAX4566CPE+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG409EJ | Harris Corporation | 4-CHANNEL ANALOG MUX | 86% | View |
| DG409DJ+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16DIP | 81% | View |
| DG408DJ | Harris Corporation | SINGLE-ENDED MULTIPLEXER, 1 FUNC | 73% | View |
| DG403DJ-E3 | Vishay Siliconix | IC ANALOG SWITCH SPDT 16DIP | 65% | View |
| DG401EJ | Harris Corporation | MONOLITHIC CMOS ANALOG SWITCH | 64% | View |
| DG401DJ | Harris Corporation | SPST, 2 FUNC, 1 CHANNEL, CMOS, P | 56% | View |
