Analog Devices Inc./Maxim Integrated
IC MUX/SW ANLG LV CMOS 16-DIP

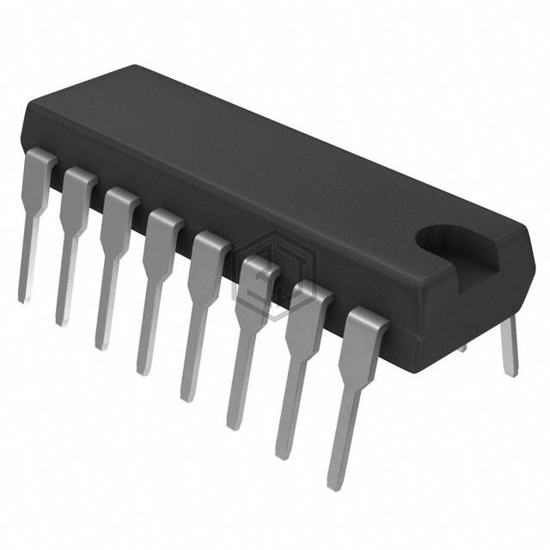

MAX4560CPE+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MUX/SW ANLG LV CMOS 16-DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 3.
In Stock: 6,451
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 160Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| -3db Bandwidth | - |
| Charge Injection | 2.4pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -93dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
MAX4560CPE+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 5962-9204202MEA | Analog Devices Inc./Maxim Integrated | IC SWITCH SP4T DUAL 16CDIP | 70% | View |
| DG409AK/883B | Analog Devices Inc./Maxim Integrated | IC MUTIPLEXER 4:1 100OHM 16CDIP | 70% | View |
| MAX308CPE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16DIP | 66% | View |
| DG401BDJ-E3 | Vishay Siliconix | IC ANALOG SWITCH SPDT 16DIP | 58% | View |
| DG403DJ | Harris Corporation | SPDT, 2 FUNC, 1 CHANNEL, CMOS, P | 55% | View |
| MAX325CPA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8DIP | 53% | View |
