Analog Devices Inc./Maxim Integrated
IC MULTIPLEXER 4X1 14DIP

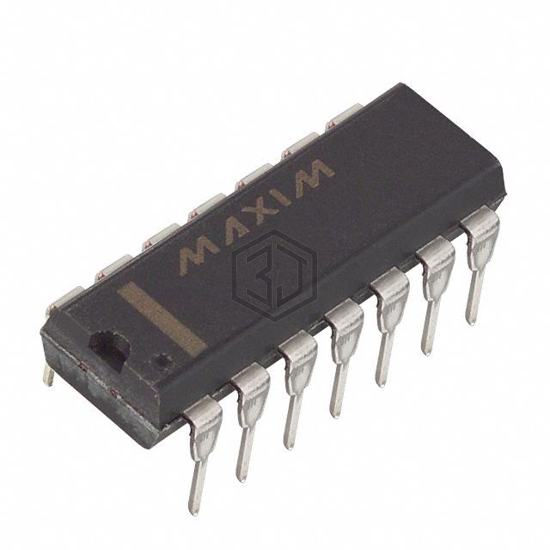

MAX4534EPD is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MULTIPLEXER 4X1 14DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 14-DIP (0.300", 7.62mm), number of circuits 1.
In Stock: 899
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 275ns, 200ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 6.5pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -53dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP |
MAX4534EPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4508EPE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16DIP | 91% | View |
| MAX4508EPE | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16DIP | 91% | View |
| MAX4535EPD | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 2X1 14DIP | 91% | View |
| MAX4700EPE | Analog Devices Inc./Maxim Integrated | IC SW DUAL 1.25 OHM SPST 16-DIP | 63% | View |
| MAX4668EPE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 16DIP | 63% | View |
| MAX4603EPE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16DIP | 53% | View |
