Analog Devices Inc./Maxim Integrated
IC SWITCH QUAD SPST 16DIP

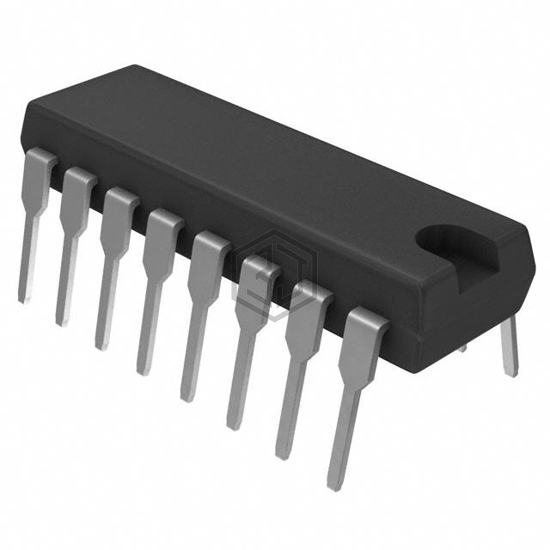

MAX4522EPE is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH QUAD SPST 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 4.
In Stock: 2,044
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 80ns, 30ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 2pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
MAX4522EPE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4523EPE | Analog Devices Inc./Maxim Integrated | IC SW QUAD ANLG LV SPST 16-DIP | 100% | View |
| MAX4522EPE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16DIP | 100% | View |
| MAX4521EPE | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16DIP | 100% | View |
| TS12A4514P | Texas Instruments | IC SWITCH SPST 8DIP | 62% | View |
| ADG201HSJNZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16DIP | 59% | View |
| ADG609BNZ | Analog Devices Inc. | IC MULTIPLEXER DUAL 4X1 16DIP | 57% | View |
