Analog Devices Inc./Maxim Integrated

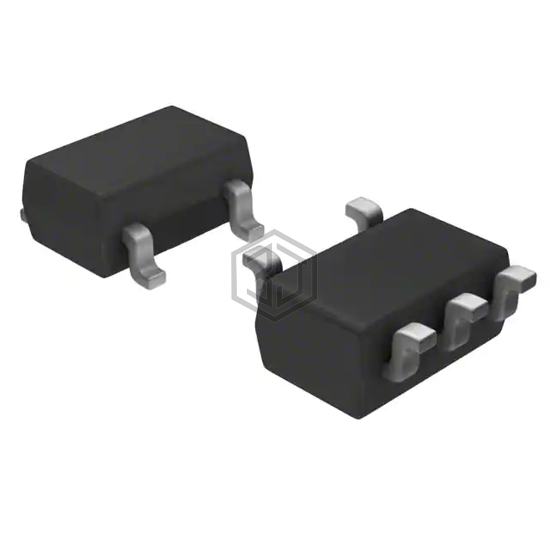

IC ANALOG SWITCH SPST SOT23-5
MAX4515CUK is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC ANALOG SWITCH SPST SOT23-5. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case SC-74A, SOT-753, number of circuits 1.
In Stock: 10,523
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 20Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
MAX4515CUK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1402BRMZ | Analog Devices Inc. | IC SWITCH SPST 1OHM RON 8MSOP | 65% | View |
| DG403DY+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL DPST 16SOIC | 61% | View |
| DG401CY+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 16SOIC | 61% | View |
| ADG1411YRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 58% | View |
| MAX309CSE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 4X1 16SOIC | 57% | View |
| MAX322ESA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8SOIC | 57% | View |
Submit your RFQ for MAX4515CUK and get a quote within 24 hours.
