Analog Devices Inc./Maxim Integrated

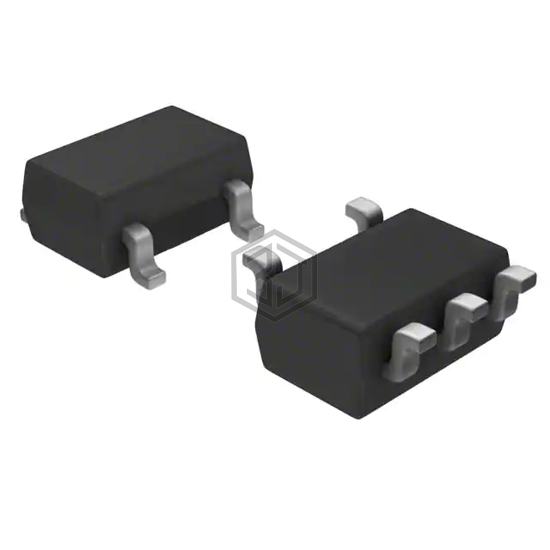

IC SWITCH SPST SOT23-5
MAX4504CUK+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST SOT23-5. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case SC-74A, SOT-753, number of circuits 1.
In Stock: 2,866
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 250Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±1V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 3pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4503EUK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 100% | View |
| MAX4560CEE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER TRIPLE 1X2 16QSOP | 77% | View |
| DG401DY+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 16SOIC | 57% | View |
| DG403DY+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL DPST 16SOIC | 57% | View |
| DG401BDY-E3 | Vishay Siliconix | IC ANALOG SWITCH SPDT 16SOIC | 57% | View |
| MAX396EWI+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 16X1 28SOIC | 55% | View |
Submit your RFQ for MAX4504CUK+T and get a quote within 24 hours.
