Analog Devices Inc./Maxim Integrated
IC MULTIPLEXER 16X1 28SSOP

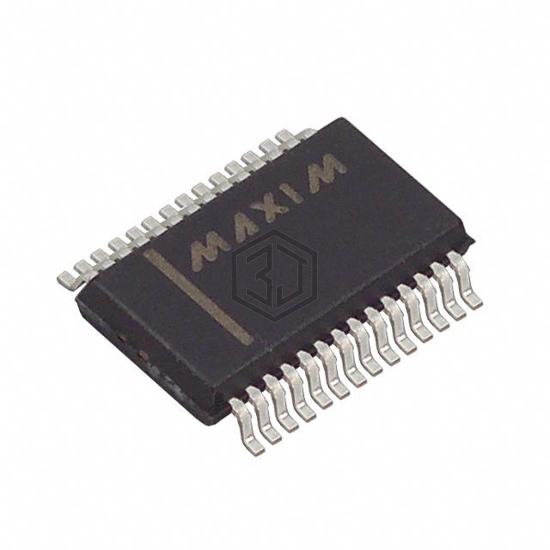

MAX396CAI is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MULTIPLEXER 16X1 28SSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 28-SSOP (0.209", 5.30mm Width), number of circuits 1.
In Stock: 9,154
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.8Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 16V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 80pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -92dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
MAX396CAI is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX382CWN+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 18SOIC | 91% | View |
| MAX324CSA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8SOIC | 89% | View |
| MAX323ESA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8SOIC | 89% | View |
| DG403CY+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL DPST 16SOIC | 54% | View |
| MAX4531EWP+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 20SOIC | 52% | View |
| MAX4640ESD+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14SOIC | 52% | View |
