Analog Devices Inc./Maxim Integrated
HV 80V BUCK CONTROLLER

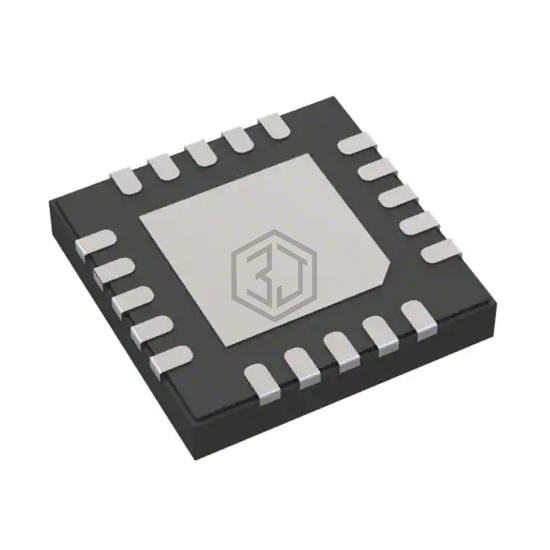

MAX25206ATPA/VY+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. HV 80V BUCK CONTROLLER. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3.5V ~ 60V, package / case 20-WFQFN Exposed Pad.
In Stock: 5,748
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 60V |
| Frequency - Switching | 2.2MHz |
| Duty Cycle (Max) | 97% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-SWTQFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX25207ATPA/VY+ | Analog Devices Inc./Maxim Integrated | HV 80V BUCK CONTROLLER | 100% | View |
| MAX25206ATPC/VY+T | Analog Devices Inc./Maxim Integrated | 65V 7UA BUCK CONTROLLER FOR AUTO | 100% | View |
| MAX25206ATPB/VY+T | Analog Devices Inc./Maxim Integrated | HV 80V BUCK CONTROLLER | 100% | View |
| NCV891930MW01R2G | onsemi | IC CTLR SYNC BUCK 24QFNW | 96% | View |
| NCV891930MW00AR2G | onsemi | IC CTLR SYNC BUCK 24QFNW | 93% | View |
| NCV891930MW01AR2G | onsemi | IC CTLR SYNC BUCK 24QFNW | 93% | View |
Submit your RFQ for MAX25206ATPA/VY+ and get a quote within 24 hours.
