Analog Devices Inc./Maxim Integrated
DUAL H-BRIDGE FOR STEPPER AND BR

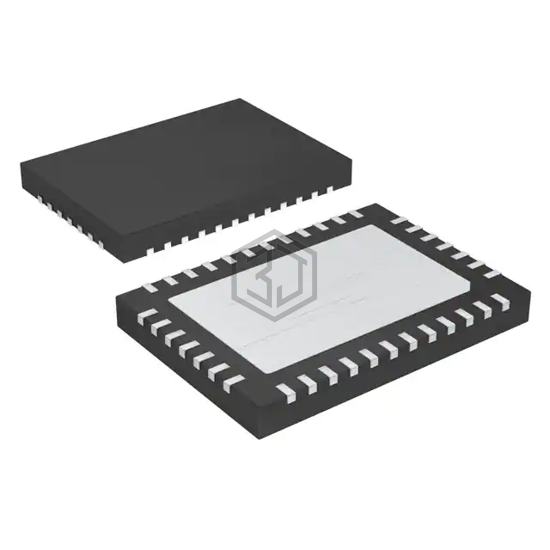

MAX22205ATU+ is a PMIC - Motor Drivers, Controllers manufactured by Analog Devices Inc./Maxim Integrated. DUAL H-BRIDGE FOR STEPPER AND BR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 65V, package / case 38-WFQFN Exposed Pad.
In Stock: 1,183
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | On/Off, PWM |
| Technology | NMOS |
| Step Resolution | 1, 1/2 |
| Applications | DC Motors, General Purpose, Stepper Motors |
| Current - Output | 7.6A |
| Voltage - Supply | 4.5V ~ 65V |
| Voltage - Load | 4.5V ~ 65V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-TQFN (5x7) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV2511QDAPRQ1 | Texas Instruments | IC MOTOR DRVR 4.5V-26V 32HTSSOP | 98% | View |
| MCT8316Z0RRGFR | Texas Instruments | 40-V MAX, 8-A PEAK, SENSORED TRA | 98% | View |
| MCT8316Z0TRGFR | Texas Instruments | IC BLDC MOTOR DRIVER | 98% | View |
| TB9051FTG,EL | Toshiba Semiconductor and Storage | MOTOR CONTROLLER SINGLE CHANNEL | 87% | View |
| DRV8850RGYR | Texas Instruments | IC MTR DRV UNIPOLAR 2-5.5V 24QFN | 69% | View |
| DRV8850RGYT | Texas Instruments | IC MTR DRV UNIPOLAR 2-5.5V 24QFN | 69% | View |
Submit your RFQ for MAX22205ATU+ and get a quote within 24 hours.
