Analog Devices Inc./Maxim Integrated
DCDC & HOST-CHARGE EMULATOR

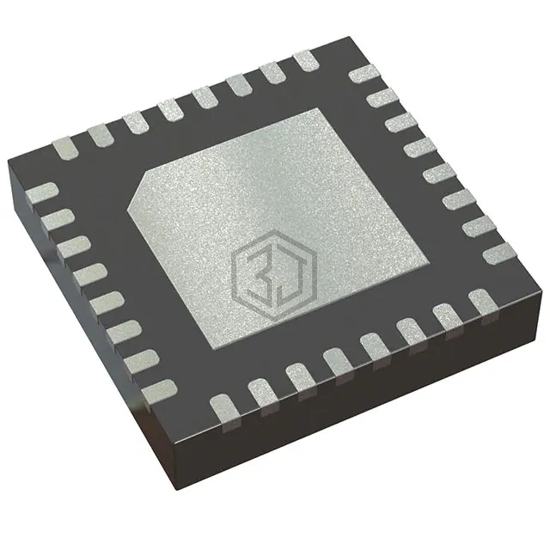

MAX20461ATJB/V+ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. DCDC & HOST-CHARGE EMULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 32-WFQFN Exposed Pad, current - output 3A.
In Stock: 6,772
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | 7V |
| Current - Output | 3A |
| Frequency - Switching | 275kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) |
MAX20461ATJB/V+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX20461ATJBE/V+ | Analog Devices Inc./Maxim Integrated | IC REG STEP DOWN CONV | 100% | View |
| MAX20461ATJAE/V+ | Analog Devices Inc./Maxim Integrated | IC REG STEP DOWN CONV | 100% | View |
| MAX20461ATJB/V+T | Analog Devices Inc./Maxim Integrated | DCDC & HOST-CHARGE EMULATOR | 100% | View |
| LT3697IMSE#TRPBF | Analog Devices Inc. | IC REG BUCK ADJ 2.5A 16MSOP | 86% | View |
| L6986ITR | STMicroelectronics | 38 V, 5W SYNCHRONOUS ISO-BUCK CO | 55% | View |
| A6986ITR | STMicroelectronics | AUTOMOTIVE 38 V, 5W SYNCHRONOUS | 55% | View |
Submit your RFQ for MAX20461ATJB/V+ and get a quote within 24 hours.
