Analog Devices Inc./Maxim Integrated
IC GATE DRVR HALF-BRIDGE 15WLP
MAX20307EWL+ is a PMIC - Gate Drivers manufactured by Analog Devices Inc./Maxim Integrated. IC GATE DRVR HALF-BRIDGE 15WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 15-WFBGA, WLBGA.
In Stock: 2,981
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | 0.4V, 1.6V |
| Current - Peak Output (Source, Sink) | 1A, 5A |
| Input Type | TTL |
| High Side Voltage - Max (Bootstrap) | 60 V |
| Rise / Fall Time (Typ) | 5ns, 1ns |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

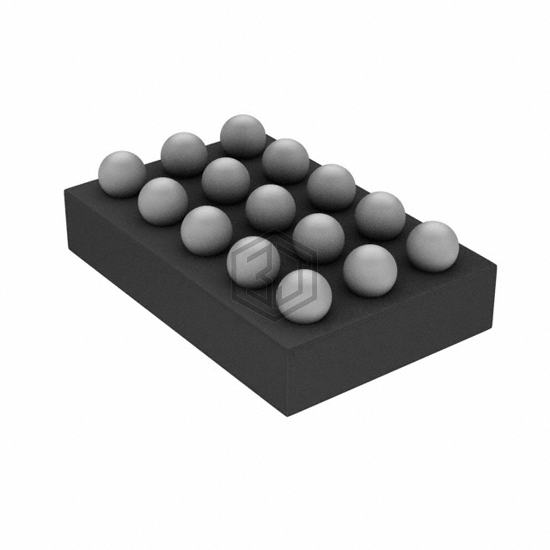

| Package / Case | 15-WFBGA, WLBGA |
| Supplier Device Package | 15-WLP (1.22x2.05) |
MAX20307EWL+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM5106MMX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10VSSOP | 67% | View |
| LM5106SD/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10WSON | 67% | View |
| MIC4606-2YML-TR | Microchip Technology | IC GATE DRVR HALF-BRIDGE 16QFN | 64% | View |
| AUIR2085STR | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 64% | View |
| MIC4606-2YTS-T5 | Microchip Technology | IC GATE DRVR FULL-BRIDGE 16TSSOP | 64% | View |
| MIC4606-2YML-T5 | Microchip Technology | IC GATE DRVR HALF-BRIDGE 16QFN | 64% | View |
Submit your RFQ for MAX20307EWL+ and get a quote within 24 hours.
