Analog Devices Inc./Maxim Integrated
HV BUCK BOOST FOR VO>9V & FSW 20

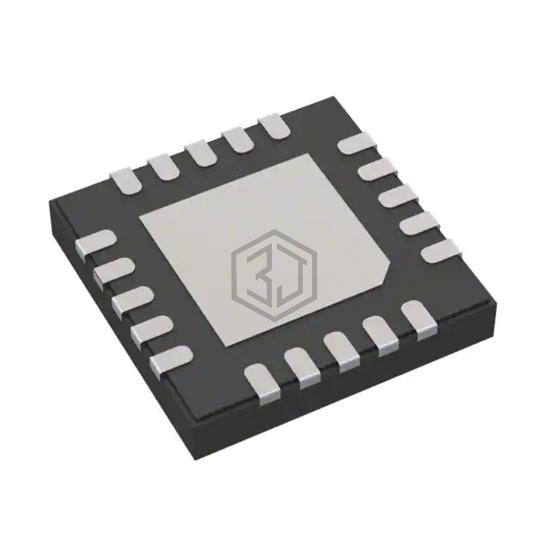

MAX20040BATPB/VY+T is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. HV BUCK BOOST FOR VO>9V & FSW 20. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C, package / case 20-WFQFN Exposed Pad, current - output 1.2A.
In Stock: 1,847
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Output Type | Programmable (Fixed) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | - |
| Voltage - Output (Max) | 15V |
| Current - Output | 1.2A |
| Frequency - Switching | 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-TQFN-EP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX20040ATPA/VY+T | Analog Devices Inc./Maxim Integrated | AUTOMOTIVE, 2V TO 36V, 2.1 MHZ, | 100% | View |
| MAX20040BATPB/VY+ | Analog Devices Inc./Maxim Integrated | HV BUCK BOOST FOR VO>9V & FSW 20 | 100% | View |
| MAX20040BATPA/VY+T | Analog Devices Inc./Maxim Integrated | IC REG HI SPEED USB PROT TQFN | 100% | View |
| MAX20040BATPA/VY+ | Analog Devices Inc./Maxim Integrated | IC REG HI SPEED USB PROT QFN | 100% | View |
| MAX20040DATPA/VY+T | Analog Devices Inc./Maxim Integrated | IC REG HI SPEED USB PROT QFN | 100% | View |
| MAX20040DATPA/VY+ | Analog Devices Inc./Maxim Integrated | IC REG HI SPEED USB PROT TQFN | 100% | View |
Submit your RFQ for MAX20040BATPB/VY+T and get a quote within 24 hours.
