Analog Devices Inc./Maxim Integrated

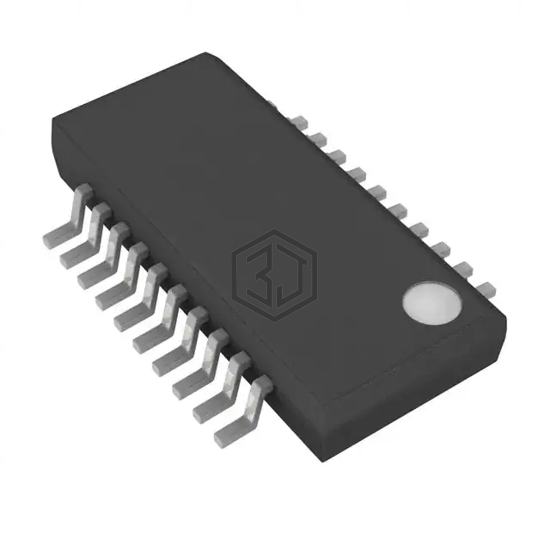

IC REG CTRLR BUCK 20QSOP
MAX1962EEP+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REG CTRLR BUCK 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.35V ~ 5.5V, package / case 20-SSOP (0.154", 3.90mm Width).
In Stock: 2,173
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Frequency - Switching | 500kHz, 1MHz |
| Duty Cycle (Max) | 92% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R1224N122H-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 100% | View |
| R1224N602H-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 100% | View |
| R1224N122F-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 100% | View |
| R1224N152H-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 100% | View |
| R1224N102H-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 100% | View |
| XC9221B095ER-G | Torex Semiconductor Ltd | 16V INPUT STEP-DOWN DCDC CONTROL | 98% | View |
Submit your RFQ for MAX1962EEP+ and get a quote within 24 hours.
