Analog Devices Inc./Maxim Integrated
IC REG CTRLR BUCK 20QSOP

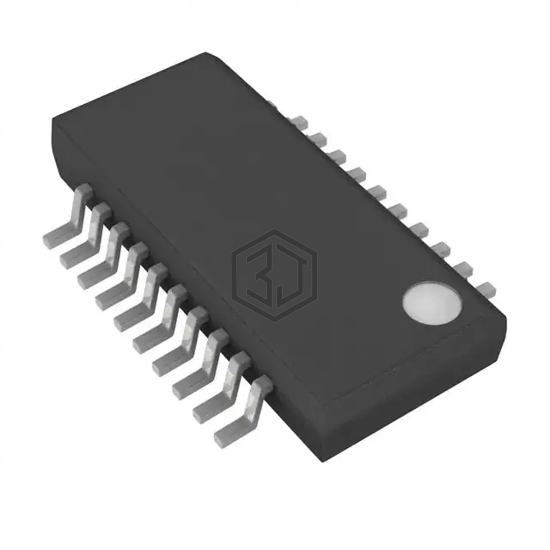

MAX1961EEP+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REG CTRLR BUCK 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.35V ~ 5.5V, package / case 20-SSOP (0.154", 3.90mm Width).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Frequency - Switching | 500kHz, 1MHz |
| Duty Cycle (Max) | 92% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX1962EEP+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 20QSOP | 100% | View |
| R1224N182F-TR-FE | Nisshinbo Micro Devices Inc. | 18.5V INPUT PWM/VFM STEP-DOWN DC | 100% | View |
| IXD3221A095MR-G | Zilog | IC REG CTRLR BUCK SOT25 | 98% | View |
| MIC2169BYMME | Microchip Technology | IC REG CTRLR BUCK 10MSOP | 97% | View |
| LM3477MMX/NOPB | Texas Instruments | IC REG CTRLR BUCK/BCK-BST 8VSSOP | 97% | View |
| LM3152MH-3.3/NOPB | Texas Instruments | IC REG CTRLR BUCK 14TSSOP | 89% | View |
Submit your RFQ for MAX1961EEP+ and get a quote within 24 hours.
