Analog Devices Inc./Maxim Integrated

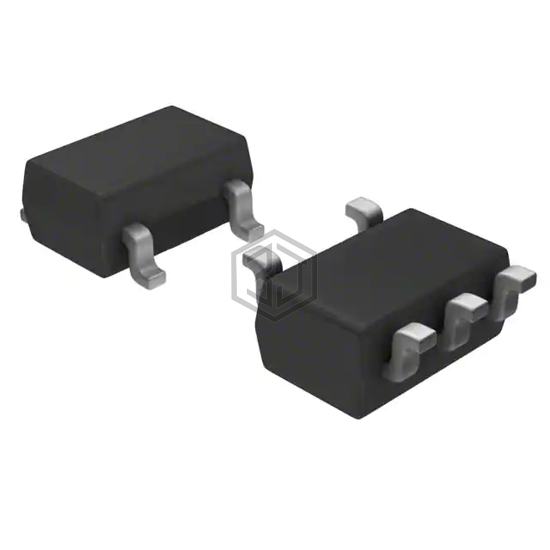

IC REG LIN NEG ADJ 200MA SOT23-5
MAX1735EUK25 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc./Maxim Integrated. IC REG LIN NEG ADJ 200MA SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-74A, SOT-753, current - supply (max) 125 µA.
In Stock: 7,985
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Negative |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -6.5V |
| Voltage - Output (Min/Fixed) | -1.25V (-2.5V) |
| Voltage - Output (Max) | -5.5V |
| Voltage Dropout (Max) | 0.24V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 85 µA |
| Current - Supply (Max) | 125 µA |
| PSRR | 60dB (100Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
MAX1735EUK25 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX1735EUK25+T | Analog Devices Inc./Maxim Integrated | IC REG LIN NEG ADJ 200MA SOT23-5 | 100% | View |
| MAX1735EUK30+T | Analog Devices Inc./Maxim Integrated | IC REG LIN NEG ADJ 200MA SOT23-5 | 100% | View |
| MAX1735EUK50+T | Analog Devices Inc./Maxim Integrated | IC REG LIN NEG ADJ 200MA SOT23-5 | 100% | View |
| MAX1735EUK50-T | Analog Devices Inc./Maxim Integrated | IC REG LIN NEG ADJ 200MA SOT23-5 | 100% | View |
| MAX1735EUK25+TG002 | Analog Devices Inc./Maxim Integrated | IC REG LIN NEG ADJ 200MA SOT23-5 | 100% | View |
| MAX1735EUK25+ | Analog Devices Inc./Maxim Integrated | IC REG LIN NEG ADJ 200MA SOT23-5 | 100% | View |
Submit your RFQ for MAX1735EUK25 and get a quote within 24 hours.
