Analog Devices Inc./Maxim Integrated
36V, 220KHZ TO 2.2MHZ STEP-DOWN

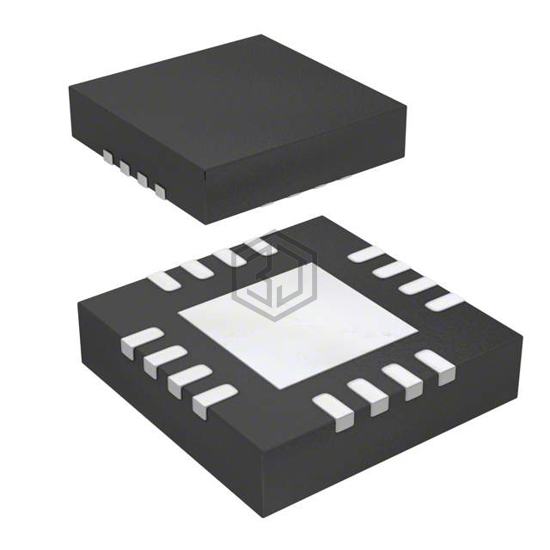

MAX16936RATEA/V+CA is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. 36V, 220KHZ TO 2.2MHZ STEP-DOWN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-WQFN Exposed Pad, current - output 2.5A.
In Stock: 3,066
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable (Fixed) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.5V |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 1V (5V) |
| Voltage - Output (Max) | 10V |
| Current - Output | 2.5A |
| Frequency - Switching | 220kHz ~ 2.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX16936SAUEB/V+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ/3.3V 2.5A 16TSSO | 97% | View |
| MAX16936SATEA/V+ | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ/5V 2.5A 16TQFN | 97% | View |
| MAX16936SATEA/V+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ/5V 2.5A 16TQFN | 97% | View |
| MAX16938AUERA/V+T | Analog Devices Inc./Maxim Integrated | IC REG STEP DOWN CONVERTER TQFN | 97% | View |
| MAX16936RATEB/V+ | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ/3.3V 2.5A 16TQFN | 97% | View |
| MAX16938AUERA/V+ | Analog Devices Inc./Maxim Integrated | IC REG STEP DOWN CONVERTER TQFN | 97% | View |
Submit your RFQ for MAX16936RATEA/V+CA and get a quote within 24 hours.
