Analog Devices Inc./Maxim Integrated
INTEGRATED CIRCUIT

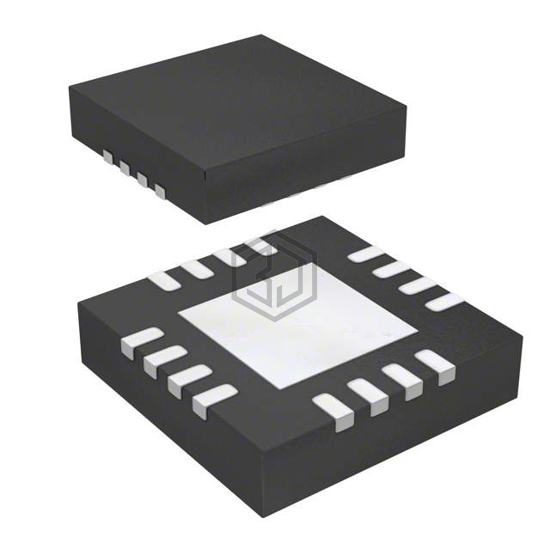

MAX16909SATE/V+CMF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. INTEGRATED CIRCUIT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, current - output 3A.
In Stock: 6,013
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable (Fixed) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.5V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 1V (5V) |
| Voltage - Output (Max) | 10V |
| Current - Output | 3A |
| Frequency - Switching | 400kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (5x5) |
MAX16909SATE/V+CMF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX16909RAUE/V+ | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ/5V 3A 16TSSOP | 100% | View |
| MAX16909RAUE+ | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ/5V 3A 16TSSOP | 100% | View |
| MAX16909RAUE+CFZ | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ/5V 3A 16TSSOP | 100% | View |
| MAX16909RAUE+TCFZ | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ/5V 3A 16TSSOP | 100% | View |
| MAX16909RATE+ | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ/5V 3A 16TQFN | 100% | View |
| MAX16909RATE+T | Analog Devices Inc./Maxim Integrated | IC REG BUCK ADJ/5V 3A 16TQFN | 100% | View |
Submit your RFQ for MAX16909SATE/V+CMF and get a quote within 24 hours.
