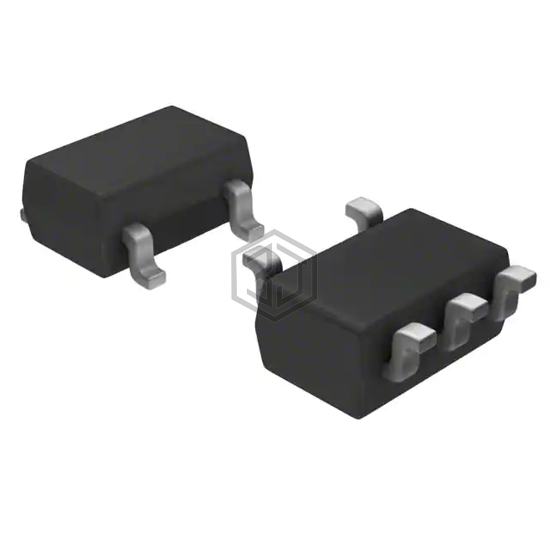

Analog Devices Inc./Maxim Integrated
IC REG CHARGE PUMP 2VIN SOT23-5
MAX1682EUK-T is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc./Maxim Integrated. IC REG CHARGE PUMP 2VIN SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-74A, SOT-753, current - output 45mA.
In Stock: 2,500
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Ratiometric |
| Output Configuration | Positive |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2Vin |
| Voltage - Output (Max) | - |
| Current - Output | 45mA |
| Frequency - Switching | 12kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
MAX1682EUK-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX1682EUK+T | Analog Devices Inc./Maxim Integrated | IC REG CHARGE PUMP 2VIN SOT23-5 | 100% | View |
| MAX1683EUK+T | Analog Devices Inc./Maxim Integrated | IC REG CHARGE PUMP 2VIN SOT23-5 | 73% | View |
| MAX1683EUK-T | Analog Devices Inc./Maxim Integrated | IC REG CHARGE PUMP 2VIN SOT23-5 | 73% | View |
Submit your RFQ for MAX1682EUK-T and get a quote within 24 hours.
