Analog Devices Inc./Maxim Integrated
IC LED DRVR CTRLR PWM 20TSSOP

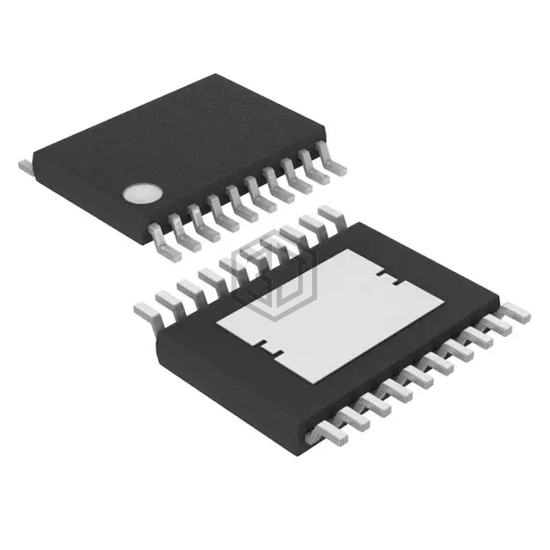

MAX16814BEUP+ is a PMIC - LED Drivers manufactured by Analog Devices Inc./Maxim Integrated. IC LED DRVR CTRLR PWM 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - output / channel 150mA.
In Stock: 3,185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC DC Controller |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No |
| Number of Outputs | 4 |
| Voltage - Supply (Min) | 4.75V |
| Voltage - Supply (Max) | 40V |
| Voltage - Output | - |
| Current - Output / Channel | 150mA |
| Frequency | 200kHz ~ 2MHz |
| Dimming | PWM |
| Applications | Backlight, Lighting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX25603AUI/V+ | Analog Devices Inc./Maxim Integrated | IC LED DRIVER CTRLR PWM 28TSSOP | 95% | View |
| ISL97687IRTZ | Renesas Electronics America Inc | IC LED DRVR CTRL PWM 160MA 28QFN | 91% | View |
| HVLED002TR | STMicroelectronics | IC LED DRIVER CTRLR 8SOIC | 77% | View |
| LT3763IFE#TRPBF | Analog Devices Inc. | IC LED DRIVER CTRLR PWM 28TSSOP | 77% | View |
| LT3964RUHE-1#TRPBF | Analog Devices Inc. | IC LED DRVR CTRLR PWM 1.6A 36QFN | 70% | View |
| LT3745EUJ-1#PBF | Analog Devices Inc. | IC LED DRVR CTRLR PWM 75MA 40QFN | 69% | View |
Submit your RFQ for MAX16814BEUP+ and get a quote within 24 hours.
