Analog Devices Inc./Maxim Integrated
IC REG CTRLR BUCK PMBUS 32TQFN

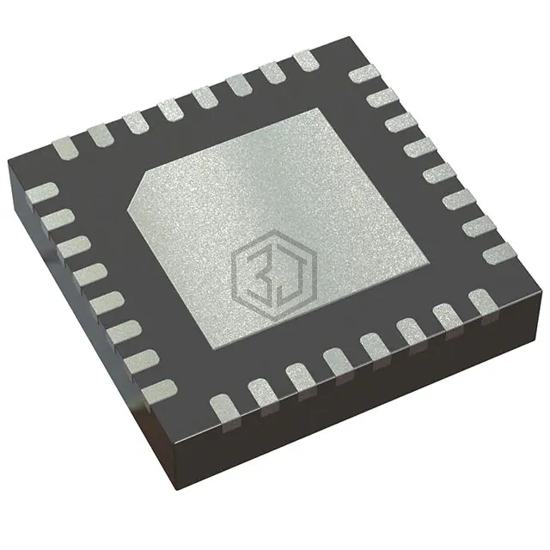

MAX15301AA02+CJK is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REG CTRLR BUCK PMBUS 32TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 14V, package / case 32-WFQFN Exposed Pad.
In Stock: 2,915
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 14V |
| Frequency - Switching | 300kHz ~ 1MHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | PMBus |
| Control Features | Current Limit, Enable, Power Good |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RT8125HGQW | Richtek USA Inc. | IC REG CTRLR BUCK PWM WDFN-10 | 100% | View |
| RT8115CGQW | Richtek USA Inc. | IC REG CTRLR BUCK PWM WDFN-10 | 100% | View |
| LT3845MPFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 16TSSOP | 99% | View |
| S-8533A39AFT-TB-U | ABLIC Inc. | IC REG CTRLR BUCK 8TSSOP | 94% | View |
| S-8521E19MC-BLET2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 93% | View |
| S-8520E18MC-BJDT2U | ABLIC Inc. | IC REG CTRLR BUCK SOT23-5 | 93% | View |
Submit your RFQ for MAX15301AA02+CJK and get a quote within 24 hours.
