Analog Devices Inc./Maxim Integrated
60V H-BRIDGE STEP-UP/STEP-DOWN C

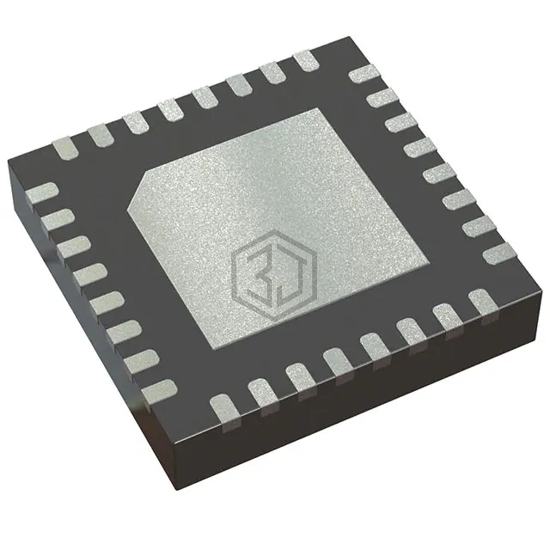

MAX15158AATJ+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. 60V H-BRIDGE STEP-UP/STEP-DOWN C. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 8.5V ~ 14V, package / case 32-WFQFN Exposed Pad.
In Stock: 6,752
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 4 |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 14V |
| Frequency - Switching | 120kHz ~ 1MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX15158ZATJ+T | Analog Devices Inc./Maxim Integrated | HV MULTIPHASE BOOST CONTROLLER | 100% | View |
| MAX15158ZATJ+ | Analog Devices Inc./Maxim Integrated | IC HV BOOST CONTROL | 100% | View |
| LTC3786IUD#PBF | Analog Devices Inc. | IC REG CTRLR MULT TOPOLOGY 16QFN | 72% | View |
| LTC3786HMSE#PBF | Analog Devices Inc. | PWR MGMT SWITCHING REGULATOR | 72% | View |
| LTC3769HFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 20TSSOP | 72% | View |
| LTC3769MPFE#PBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 20TSSOP | 72% | View |
Submit your RFQ for MAX15158AATJ+ and get a quote within 24 hours.
