Analog Devices Inc./Maxim Integrated
IC REG CTRLR BUCK 16QSOP

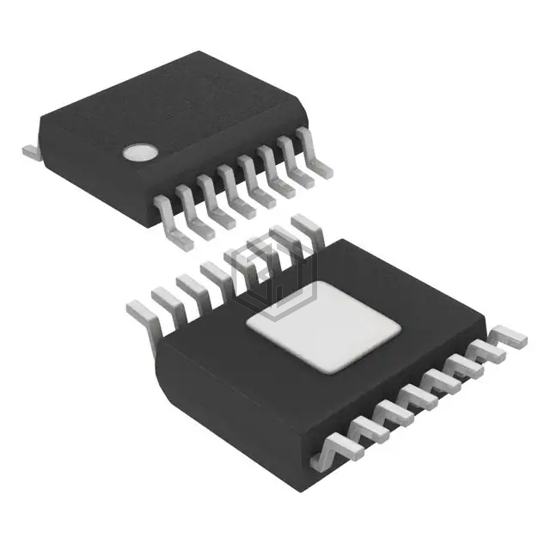

MAX15046CAEE+T is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REG CTRLR BUCK 16QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 40V, package / case 16-LSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 2,137
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V |
| Frequency - Switching | 100kHz ~ 1MHz |
| Duty Cycle (Max) | 87.5% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 16-QSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MCP19111T-E/MQ | Microchip Technology | IC REG CTRLR BUCK PMBUS 28QFN | 100% | View |
| MCP19119T-E/MQVAO | Microchip Technology | 40V POINT OF LOAD CONVERTER | 100% | View |
| MCP19111T-E/MQVAO | Microchip Technology | POINT OF LOAD CONVERTER (POL) | 100% | View |
| LM1770TMF/NOPB | Texas Instruments | IC REG CTRLR BUCK SOT23-5 | 95% | View |
| LM1771USD/NOPB | Texas Instruments | IC REG CTRLR BUCK 6WSON | 95% | View |
| TPS40422RHAR | Texas Instruments | IC REG CTRLR BUCK PMBUS 40VQFN | 84% | View |
Submit your RFQ for MAX15046CAEE+T and get a quote within 24 hours.
