Analog Devices Inc./Maxim Integrated

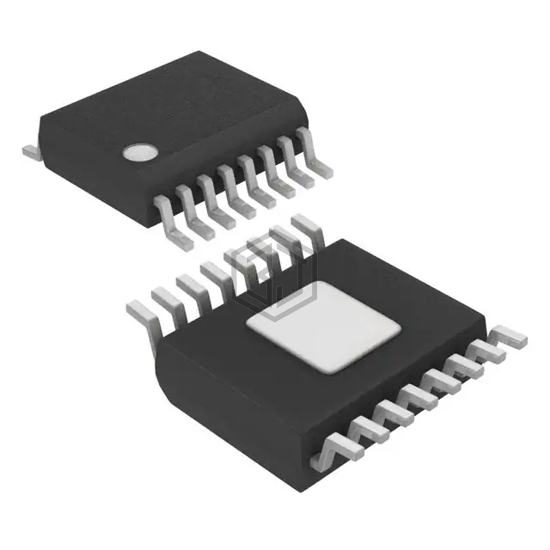

IC REG CTRLR BUCK 16QSOP
MAX15046BAEE+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REG CTRLR BUCK 16QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 40V, package / case 16-LSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 8,878
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V |
| Frequency - Switching | 100kHz ~ 1MHz |
| Duty Cycle (Max) | 87.5% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 16-QSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS40170RGYR | Texas Instruments | IC REG CTRLR BUCK 20VQFN | 100% | View |
| MAX15046AAEE+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR BUCK 16QSOP | 100% | View |
| LM1771SMM/NOPB | Texas Instruments | IC REG CTRLR BUCK 8VSSOP | 95% | View |
| LM1771TSD/NOPB-NS | National Semiconductor | SWITCHING CONTROLLER, VOLTAGE-MO | 95% | View |
| TSM108ID | STMicroelectronics | IC REG CTRLR BUCK 14SOIC | 92% | View |
| ISL81802FVEZ-T7A | Renesas Electronics America Inc | 80V DUAL SYNC BUCK CONTROLLER 38 | 84% | View |
Submit your RFQ for MAX15046BAEE+ and get a quote within 24 hours.
