Analog Devices Inc./Maxim Integrated
IC REGULATOR

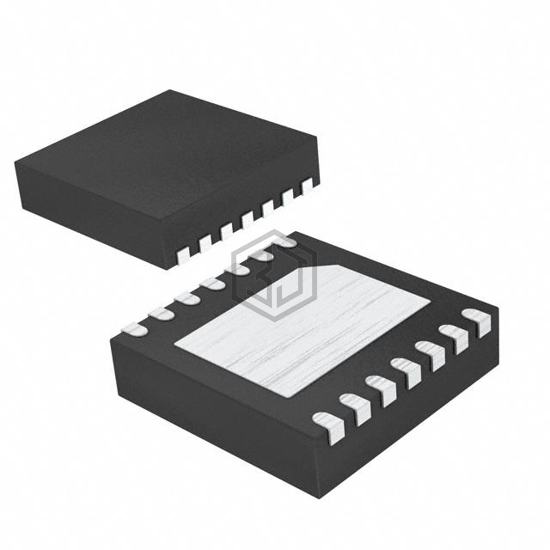

MAX15026BATD+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 28V, package / case 14-WFDFN Exposed Pad.
In Stock: 8,524
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 28V |
| Frequency - Switching | 200kHz ~ 2MHz |
| Duty Cycle (Max) | 88% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) |
MAX15026BATD+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC2127AYML-T5 | Microchip Technology | IC REG CTRLR BUCK 16VQFN | 100% | View |
| UCD7230ARGWT | Texas Instruments | IC REG CTRLR BUCK 20VQFN | 99% | View |
| LM5117QPSQE/NOPB | Texas Instruments | IC REG CTRLR BUCK 24WQFN | 98% | View |
| LT3741EUF#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 20QFN | 97% | View |
| LM27402MH/NOPB | Texas Instruments | IC REG CTRLR BUCK 16TSSOP | 95% | View |
| LM27402SQX/NOPB | Texas Instruments | IC REG CTRLR BUCK 16WQFN | 95% | View |
Submit your RFQ for MAX15026BATD+ and get a quote within 24 hours.
