Analog Devices Inc./Maxim Integrated

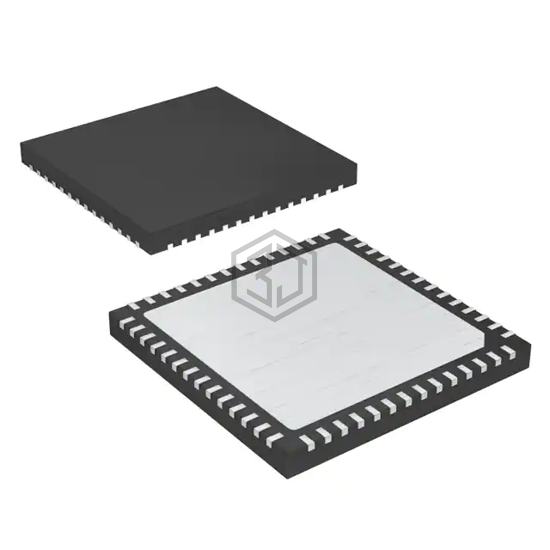

IC REG LIN POS ADJ 300MA 56TQFN
MAX15009ATN+ is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc./Maxim Integrated. IC REG LIN POS ADJ 300MA 56TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 56-WFQFN Exposed Pad, current - supply (max) 500 µA.
In Stock: 4,756
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.8V, (5V) |
| Voltage - Output (Max) | 11V |
| Voltage Dropout (Max) | 1.5V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 85 µA |
| Current - Supply (Max) | 500 µA |
| PSRR | 60dB (100Hz) |
| Control Features | Current Limit, Enable, Hold, Reset |
| Protection Features | Load Dump, Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 56-WFQFN Exposed Pad |
| Supplier Device Package | 56-TQFN (8x8) |
MAX15009ATN+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX15009ATN+T | Analog Devices Inc./Maxim Integrated | IC REG LIN POS ADJ 300MA 56TQFN | 100% | View |
| MAX15009ATJ+ | Analog Devices Inc./Maxim Integrated | IC REG LIN POS ADJ 300MA 32TQFN | 100% | View |
| MAX15009ATJ+T | Analog Devices Inc./Maxim Integrated | IC REG LIN POS ADJ 300MA 32TQFN | 100% | View |
| MAX15008ATJ+ | Analog Devices Inc./Maxim Integrated | IC REG LINEAR POS ADJ 32TQFN | 88% | View |
| MAX15008ATJ+T | Analog Devices Inc./Maxim Integrated | IC REG LINEAR POS ADJ 32TQFN | 88% | View |
Submit your RFQ for MAX15009ATN+ and get a quote within 24 hours.
