Analog Devices Inc./Maxim Integrated
IC REGULATOR

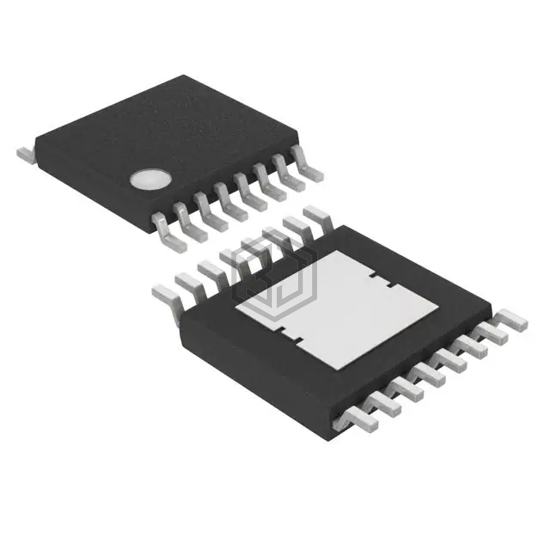

MAX15005AAUA/V+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. IC REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply (vcc/vdd) 4.5V ~ 40V, package / case 16-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 2,648
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V |
| Frequency - Switching | 15kHz ~ 1MHz |
| Duty Cycle (Max) | 80% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
MAX15005AAUA/V+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX15004BAUE+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR MULT TOP 16TSSOP | 100% | View |
| MAX15004AAUE/V+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR MULT TOP 16TSSOP | 100% | View |
| MAX15004BAUE+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR MULT TOP 16TSSOP | 100% | View |
| MAX15004AAUE+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR MULT TOP 16TSSOP | 100% | View |
| MAX15005BAUE/V+ | Analog Devices Inc./Maxim Integrated | IC REG CTRLR MULT TOP 16TSSOP | 100% | View |
| MAX15004AAUE/V+T | Analog Devices Inc./Maxim Integrated | IC REG CTRLR MULT TOP 16TSSOP | 100% | View |
Submit your RFQ for MAX15005AAUA/V+ and get a quote within 24 hours.
