Analog Devices Inc./Maxim Integrated
AUTOMOTIVE BOOST/FLYBACK/SEPIC P

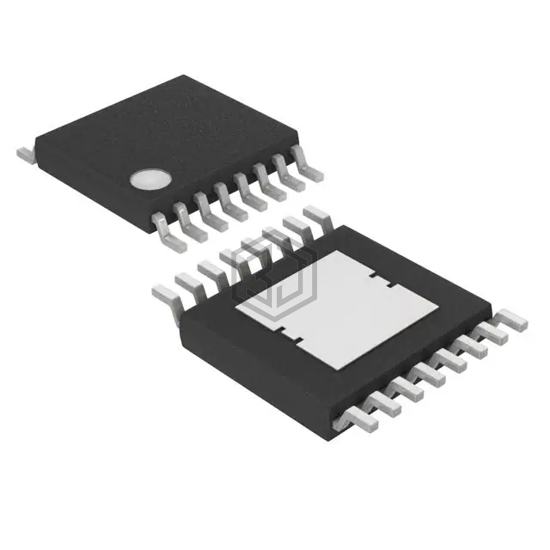

MAX15004CAUE/V+ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc./Maxim Integrated. AUTOMOTIVE BOOST/FLYBACK/SEPIC P. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 40V, package / case 16-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 8,846
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V |
| Frequency - Switching | 15kHz ~ 1MHz |
| Duty Cycle (Max) | 80% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX15005CAUE/V+ | Analog Devices Inc./Maxim Integrated | AUTOMOTIVE BOOST/FLYBACK/SEPIC P | 100% | View |
| MAX15004DAUE/V+ | Analog Devices Inc./Maxim Integrated | AUTOMOTIVE BOOST/FLYBACK/SEPIC P | 100% | View |
| MCP19116-E/MJ | Microchip Technology | IC REG CTRLR MULTI CONFIG 24QFN | 70% | View |
| MCP19114-E/MQ | Microchip Technology | IC REG CTRLR MULT TOP I2C 28QFN | 70% | View |
| MCP19114T-E/MJVAO | Microchip Technology | INTEGRATED MIXED SIGNAL DUAL | 70% | View |
| UCC2803QDREP | Texas Instruments | IC REG CTRLR MULT TOPOLOGY 8SOIC | 67% | View |
Submit your RFQ for MAX15004CAUE/V+ and get a quote within 24 hours.
