Analog Devices Inc./Maxim Integrated
IC SWITCH SPST 48LQFP

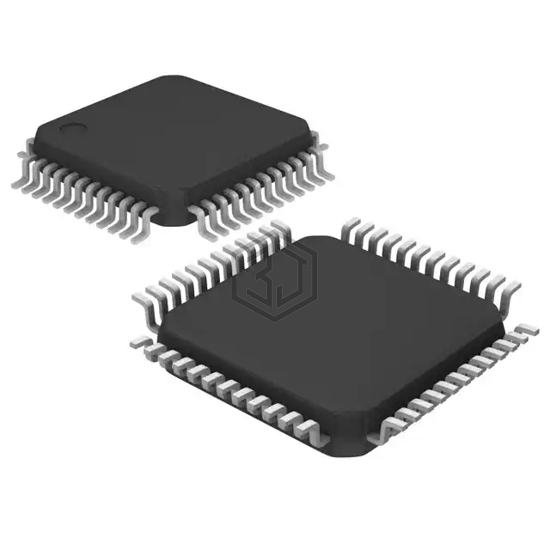

MAX14802CCM+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST 48LQFP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 48-LQFP, number of circuits 16.
In Stock: 1,499
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 16 |
| On-State Resistance (Max) | 48Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.4Ohm |
| Voltage - Supply, Single (V+) | 40V ~ 250V |
| Voltage - Supply, Dual (V±) | ±160 |
| Switch Time (Ton, Toff) (Max) | 3.5µs, 3.5µs |
| -3db Bandwidth | 20MHz |
| Charge Injection | 820pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF |
| Current - Leakage (IS(off)) (Max) | 2µA |
| Crosstalk | -80dB @ 5MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX14803CCM+TCP3 | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 16 CHAN 48TQFP | 100% | View |
| MAX14803CCM+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 48LQFP | 100% | View |
| MAX14803CCM+CP3 | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 16 CHAN 48TQFP | 100% | View |
| MAX14803CCM+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 48LQFP | 100% | View |
| MAX14803CCM+TG5E | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 48LQFP | 100% | View |
| MAX14802CCM+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 48LQFP | 100% | View |
Submit your RFQ for MAX14802CCM+ and get a quote within 24 hours.
