Analog Devices Inc./Maxim Integrated

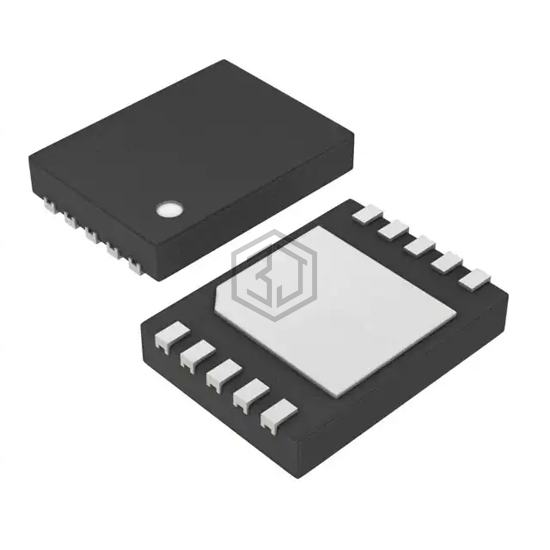

IC SWITCH DPDT SINGLE 10TDFN
MAX14689AETB+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH DPDT SINGLE 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-WFDFN Exposed Pad, number of circuits 1.
In Stock: 3,446
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450mOhm |
| Channel-to-Channel Matching (ΔRon) | 5mOhm |
| Voltage - Supply, Single (V+) | 1.6V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 200µs, 30µs |
| -3db Bandwidth | 110MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 25pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -100dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (2.5x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX14689EWL+T | Analog Devices Inc./Maxim Integrated | IC SWITCH ANALOG DPDT 9-WLP | 100% | View |
| MAX4992EVB+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 10UTQFN | 79% | View |
| MAX14764ETA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 20 OHM 8TDFN | 78% | View |
| MAX14759ETA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 1 OHM 8TDFN | 78% | View |
| MAX14762ETB+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST DUAL 10TDFN | 72% | View |
| MAX14761ETB+T | Analog Devices Inc./Maxim Integrated | IC ANALOG SWITCH | 71% | View |
Submit your RFQ for MAX14689AETB+T and get a quote within 24 hours.
