Analog Devices Inc./Maxim Integrated
IC SWITCH DPDT 5 MOHM 9WLP

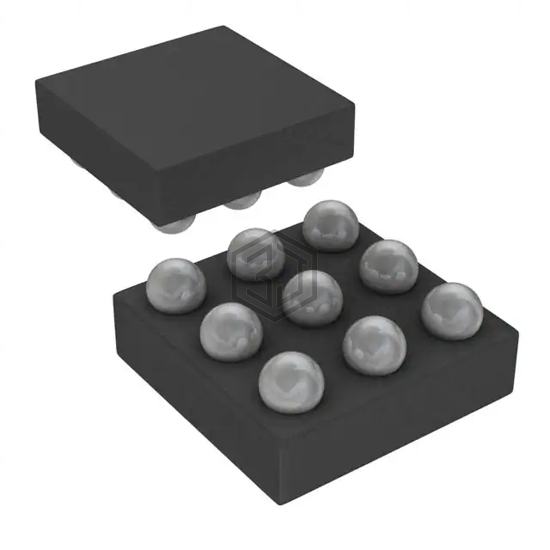

MAX14594EEWL+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH DPDT 5 MOHM 9WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 9-WFBGA, WLBGA, number of circuits 1.
In Stock: 2,736
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 380mOhm |
| Channel-to-Channel Matching (ΔRon) | 5mOhm |
| Voltage - Supply, Single (V+) | 1.6V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 10ms, 2.25ms |
| -3db Bandwidth | 200MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 25pF |
| Current - Leakage (IS(off)) (Max) | 400nA |
| Crosstalk | -80dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 9-WFBGA, WLBGA |
| Supplier Device Package | 9-WLP (1.26x1.26) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX14589EEWL+T | Analog Devices Inc./Maxim Integrated | IC ANALOG SWITCH DPDT 9WLP | 100% | View |
| MAX14589EEWL+TG2B | Analog Devices Inc./Maxim Integrated | INTEGRATED CIRCUIT | 100% | View |
| MAX20337ENT+ | Analog Devices Inc./Maxim Integrated | ULTRA-SMALL, LOW-RON, BEYOND-THE | 74% | View |
| MAX20337AEFT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST-NOX1 330MOHM 6WLP | 74% | View |
| MAX20337ENT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST-NOX1 330MOHM 6WLP | 74% | View |
| MAX20337AEFT+ | Analog Devices Inc./Maxim Integrated | IC SW SPDT-NOX1 330MOHM 6FC2QFN | 74% | View |
Submit your RFQ for MAX14594EEWL+T and get a quote within 24 hours.
