Analog Devices Inc./Maxim Integrated

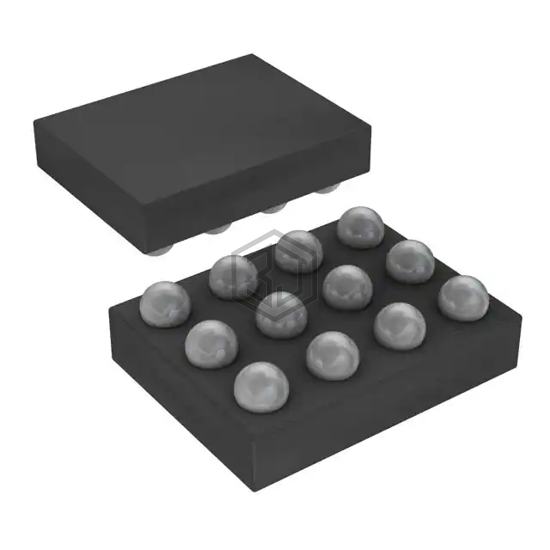

IC SWITCH DUAL SPDT 12WLP
MAX14505EWC+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH DUAL SPDT 12WLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFBGA, WLBGA, number of circuits 2.
In Stock: 9,367
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage - Supply, Single (V+) | 2.3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 60ms, 3µs |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 65pF |
| Current - Leakage (IS(off)) (Max) | 50nA |
| Crosstalk | -90dB @ 20kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFBGA, WLBGA |
| Supplier Device Package | 12-WLP (2.14x1.56) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX14505AEWC+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 12WLP | 100% | View |
| MAX14504EWC+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT X 2 500MOHM 12WLP | 100% | View |
| MAX20337ENT+ | Analog Devices Inc./Maxim Integrated | ULTRA-SMALL, LOW-RON, BEYOND-THE | 55% | View |
| MAX20337AEFT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST-NOX1 330MOHM 6WLP | 55% | View |
| MAX20337ENT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST-NOX1 330MOHM 6WLP | 55% | View |
| MAX20337AEFT+ | Analog Devices Inc./Maxim Integrated | IC SW SPDT-NOX1 330MOHM 6FC2QFN | 55% | View |
Submit your RFQ for MAX14505EWC+T and get a quote within 24 hours.
