Analog Devices Inc./Maxim Integrated

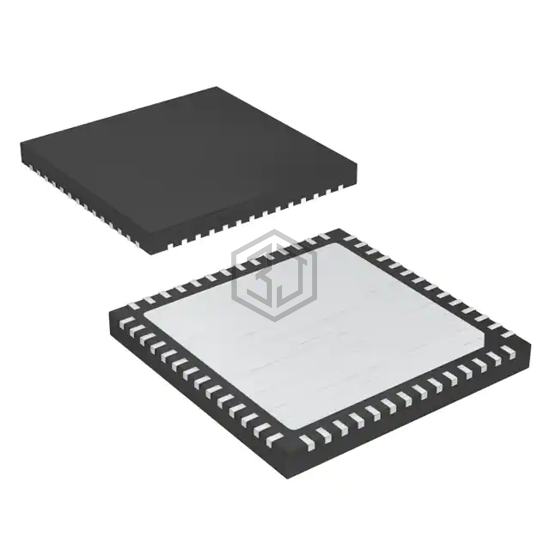

IC ADC 15BIT PIPELINED 56TQFN
MAX1429ETN+TD is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 15BIT PIPELINED 56TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.3V ~ 5.5V, package / case 56-WFQFN Exposed Pad.
In Stock: 5,575
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 15 |
| Sampling Rate (Per Second) | 100M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.3V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 56-WFQFN Exposed Pad |
| Supplier Device Package | 56-TQFN (8x8) |
| Mounting Type | Surface Mount |
MAX1429ETN+TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX1427ETN+TD | Analog Devices Inc./Maxim Integrated | IC ADC 15BIT PIPELINED 56TQFN | 100% | View |
| MAX1278ETC+ | Analog Devices Inc./Maxim Integrated | IC ADC 12BIT SAR 12TQFN | 94% | View |
| AD9215BRUZ-80 | Analog Devices Inc. | IC ADC 10BIT PIPELINED 28TSSOP | 87% | View |
| ADS4146IRGZT | Texas Instruments | IC ADC 14BIT PIPELINED 48VQFN | 82% | View |
| AD9683BCPZRL7-170 | Analog Devices Inc. | IC ADC 14BIT PIPELINED 32LFCSP | 82% | View |
| ADC12J4000NKER | Texas Instruments | IC ADC 12BIT FOLD INTERP 68VQFN | 70% | View |
Submit your RFQ for MAX1429ETN+TD and get a quote within 24 hours.
