Analog Devices Inc./Maxim Integrated

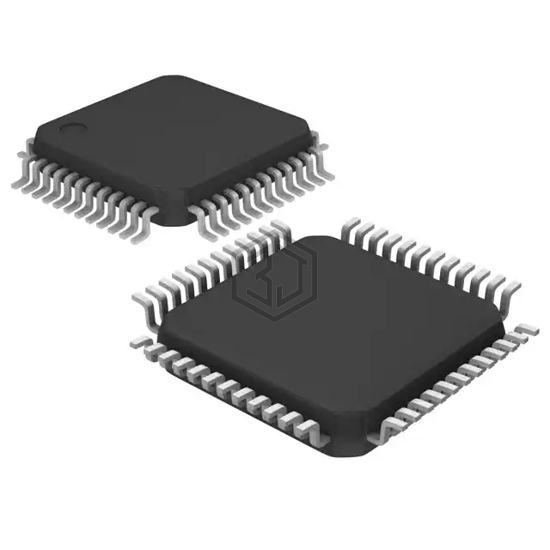

IC ADC 12BIT PIPELINED 48LQFP
MAX1422ECM+TD is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT PIPELINED 48LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 3.63V, package / case 48-LQFP.
In Stock: 7,237
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 20M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.138V ~ 3.465V |
| Voltage - Supply, Digital | 2.7V ~ 3.63V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC2253IUH#TRPBF | Analog Devices Inc. | IC ADC 12BIT PIPELINED 32QFN | 98% | View |
| LTC2311HMSE-14#WTRPBF | Analog Devices Inc. | 14-B + SIGN, 5MSPS DIFF IN ADC W | 96% | View |
| AD9235BCPZ-40 | Analog Devices Inc. | IC ADC 12BIT PIPELINED 32LFCSP | 96% | View |
| LTC2240IUP-10#PBF | Analog Devices Inc. | IC ADC 10BIT PIPELINED 64QFN | 93% | View |
| LTC2386IUH-16#TRPBF | Analog Devices Inc. | IC ADC 16BIT SAR 32QFN | 91% | View |
| MX574AKEQI+ | Analog Devices Inc./Maxim Integrated | IC ADC 12BIT SAR 28PLCC | 90% | View |
Submit your RFQ for MAX1422ECM+TD and get a quote within 24 hours.
