Analog Devices Inc./Maxim Integrated

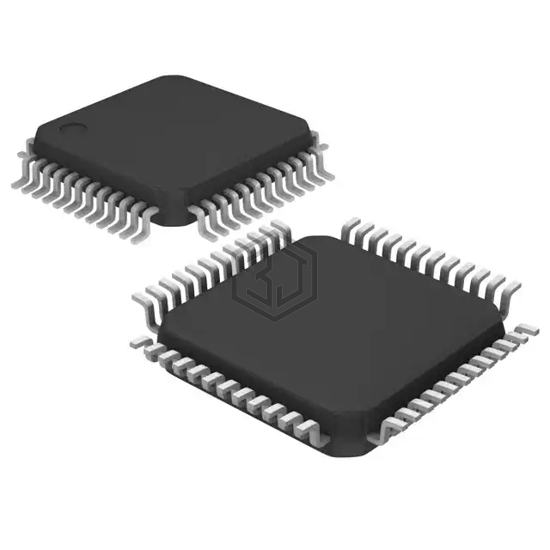

IC ADC 12BIT PIPELINED 48LQFP
MAX1421ECM+D is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT PIPELINED 48LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 3.6V, package / case 48-LQFP.
In Stock: 3,924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 40M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7854LARSZ | Analog Devices Inc. | IC ADC 12BIT SAR 28SSOP | 98% | View |
| LTC1418IG#PBF | Analog Devices Inc. | IC ADC 14BIT SAR 28SSOP | 97% | View |
| AD9225ARSZ | Analog Devices Inc. | IC ADC 12BIT PIPELINED 28SSOP | 94% | View |
| AD7623ASTZ | Analog Devices Inc. | IC ADC 16BIT SAR 48LQFP | 91% | View |
| AD7622BSTZ | Analog Devices Inc. | IC ADC 16BIT SAR 48LQFP | 91% | View |
| AD7482BSTZ | Analog Devices Inc. | IC ADC 12BIT SAR 48LQFP | 87% | View |
Submit your RFQ for MAX1421ECM+D and get a quote within 24 hours.
