Analog Devices Inc./Maxim Integrated

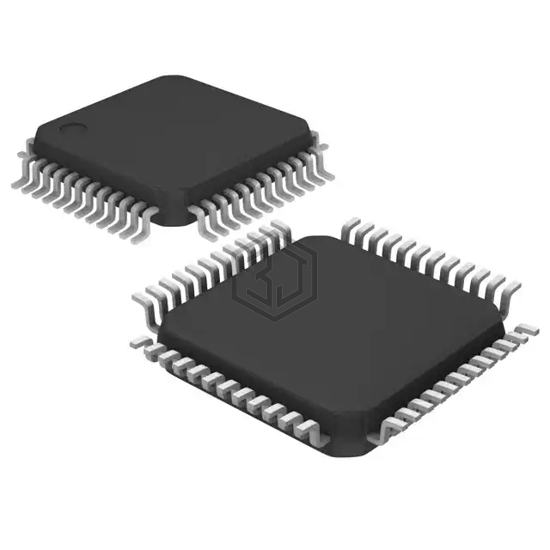

IC ADC 12BIT PIPELINED 48LQFP
MAX1421CCM+TD is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT PIPELINED 48LQFP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 2.7V ~ 3.6V, package / case 48-LQFP.
In Stock: 6,543
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 40M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Mounting Type | Surface Mount |
MAX1421CCM+TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD574AJE | Analog Devices Inc. | 12-BIT SAR PARALLEL ADC | 100% | View |
| THS1030IDWRG4 | Texas Instruments | IC ADC 10BIT PIPELINED 28SOIC | 96% | View |
| THS1040IDWR | Texas Instruments | IC ADC 10BIT PIPELINED 28SOIC | 96% | View |
| THS1031IDWR | Texas Instruments | IC ADC 10BIT PIPELINED 28SOIC | 96% | View |
| IDTADC1215S105HN-C1 | Renesas Electronics America Inc | IC ADC 12BIT PIPELINED 40VFQFPN | 93% | View |
| MAX122BEWG+T | Analog Devices Inc./Maxim Integrated | IC ADC 12BIT SAR 24SOIC | 87% | View |
Submit your RFQ for MAX1421CCM+TD and get a quote within 24 hours.
