Analog Devices Inc./Maxim Integrated

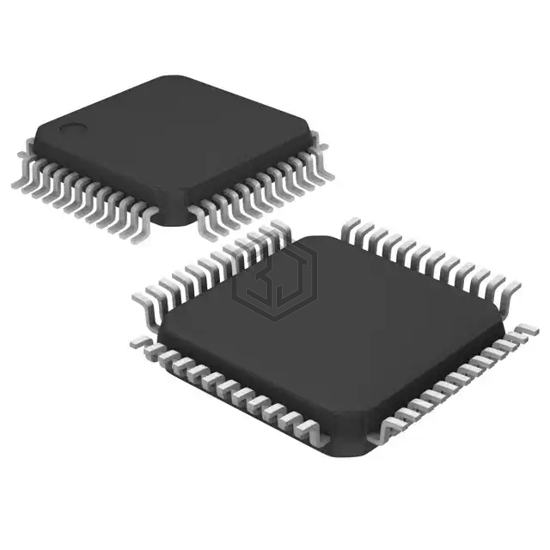

IC ADC 12BIT PIPELINED 48TQFP
MAX1420CCM+D is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT PIPELINED 48TQFP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 2.7V ~ 3.63V, package / case 48-LQFP.
In Stock: 8,964
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 60M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.135V ~ 3.465V |
| Voltage - Supply, Digital | 2.7V ~ 3.63V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Mounting Type | Surface Mount |
MAX1420CCM+D is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| THS1230CDWR | Texas Instruments | IC ADC 12BIT PIPELINED 28SOIC | 98% | View |
| LTC2245IUH | Analog Devices Inc. | IC ADC 14BIT PIPELINED 32QFN | 96% | View |
| AD9237BCPZRL7-20 | Analog Devices Inc. | IC ADC 12BIT PIPELINED 32LFCSP | 96% | View |
| AD9038JE | Analog Devices Inc. | 8-BIT FLASH ADC, PARALLEL | 92% | View |
| ADS6148IRGZ25 | Texas Instruments | IC ADC 14BIT PIPELINED 48VQFN | 92% | View |
| ADC1206S040H/C1,55 | Renesas Electronics America Inc | IC ADC 12BIT 44PQFP | 87% | View |
